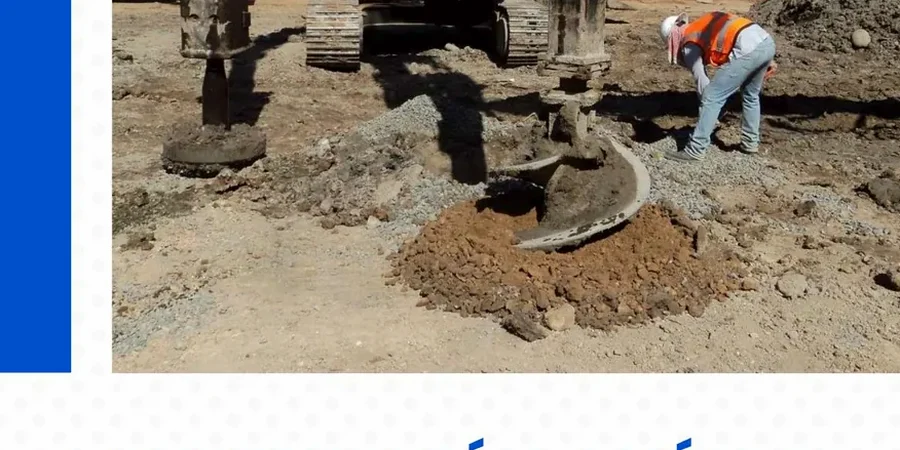

Stone Column Design in Detroit — Ground Improvement on Weak Urban Soils

A mid-rise project on Jefferson Avenue hit refusal at 45 feet. The stratigraphy was classic Detroit: 22 feet of urban fill over soft natural clay. Vibro replacement was the only path that made sense. Stone column design here must account for aggressive settlement constraints and zero tolerance for vibration damage to adjacent 1920s brick structures. We model the composite ground with a unit-cell approach. Columns with a diameter of 30 inches and a spacing of 6 feet, center to center, can reduce total settlement below 1 inch. The CPT test provides continuous tip resistance profiles that refine the friction angle assumed for the granular column. We cross-check CPT data with grain size analysis of the fill to confirm the matrix is compatible with lateral bulging theory under Hughes and Withers (1974).

A 30-inch stone column at 6-foot spacing can cut settlement from 4 inches to under 1 inch in Detroit's riverfront clays.

Methodology and scope

Southeast Detroit near the river presents 15 to 30 feet of compressible post-glacial clay. Northwest Detroit sits on a stiffer glacial till at shallow depth. This contrast drives two different design philosophies. Near the river. We design floating stone columns that transfer load through the soft clay to a bearing stratum. The settlement ratio of the treated soil typically drops from 8% to 1.5% under a 3,000 psf footing load. In the northwest. End-bearing columns on the till can be shorter. The critical check becomes bulging failure in the upper four diameters. We specify crushed limestone meeting ASTM D448 gradation No. 57. The angle of internal friction for the stone is verified at 42 degrees minimum through large-scale direct shear. This data feeds into the Priebe method calculations. For liquefiable sand lenses encountered in both zones, the liquefaction analysis quantifies the excess pore pressure ratio and defines the column grid density required for drainage.

Local considerations

In Detroit, we see contractors skip the post-installation modulus verification. They rely on the rig's ammeter reading. This is a mistake. The ammeter only records installation effort. It does not measure the composite shear modulus of the treated ground. Without a post-treatment CPT or PMT, the actual settlement reduction factor remains unknown. A second risk is stone column installation through undocumented brick rubble fill. Large obstructions can deflect the vibrator. The column goes off-plumb. The load eccentricity that results can reduce the column's capacity by 30%. We specify a pilot hole through the fill layer before vibroflot entry. A third risk is underestimating the radial drainage demand in interbedded silt seams. If the column spacing is too wide, excess pore pressure does not dissipate during seismic loading. The liquefaction trigger is not deactivated.

Technical parameters

Parameter	Typical value
Typical column diameter	24 to 36 inches
Typical grid spacing	5 to 8 feet (center to center)
Stone friction angle (φ′)	≥ 42 degrees (ASTM D3080/D5321)
Target SPT N-value (post-treatment)	15 to 25 blows/foot
Settlement reduction factor (n)	1.5 to 3.5 (Priebe method)
Maximum depth (wet top-feed)	up to 80 feet
Applicable soil type	Soft clay, silt, uncontrolled fill (cu = 15–50 kPa)

Associated technical services

Vibro-Replacement Design Package

Unit-cell settlement analysis using the Priebe method. Includes bearing capacity check, bulging failure verification, and liquefaction drainage assessment. Deliverables: plan view of grid, column schedule, and stone gradation specification per ASTM D448.

Pre- and Post-Treatment Verification

We design the QA/QC program. Pre-treatment CPT soundings at column locations to establish baseline tip resistance and sleeve friction. Post-treatment CPTs at centroid of grid and midway between columns to confirm composite shear modulus increase.

Load Test Supervision

Full-scale zone load test design and supervision. A 10-foot by 10-foot footing is constructed over a group of four to six stone columns. Settlement is monitored under incremental loading to 150% of design bearing pressure. Results validate the design modulus.

Frequently asked questions

What soils in Detroit are suitable for stone columns?

Soft to medium clays with undrained shear strength between 15 and 50 kPa. The post-glacial clay along the Detroit River fits this window. Stone columns are also effective in loose silty sand lenses and urban fill containing brick and concrete fragments, provided a pilot hole is advanced through the rubble.

How is the stone column spacing determined?

Spacing is back-calculated from the target settlement reduction. We run the Priebe method iteratively. For a 3,000 psf footing load and a 1-inch allowable settlement, typical spacing in Detroit riverfront clay is 6 feet on a triangular grid with 30-inch diameter columns. Spacing tightens to 5 feet if liquefaction drainage governs.

What does stone column design cost in Detroit?

A full design package including geotechnical model, settlement analysis, and signed drawings ranges from US$1,520 to US$5,060. The fee depends on the treated area, number of column types, and whether a zone load test is required. A simple residential footing design falls at the lower end. A multi-story building with seismic liquefaction analysis is at the upper end.

Can stone columns be installed close to existing structures?

Yes, but with limits. We maintain a minimum offset of 5 feet from existing foundations. For vibration-sensitive structures such as unreinforced masonry buildings common in Corktown, we specify a pre-augered pilot hole through the upper 10 feet to decouple the vibroflot from the adjacent wall. Vibration monitoring with a seismograph is mandatory.
